90mm ductwork
Ubbink Air Excellent 90 mm Ductwork

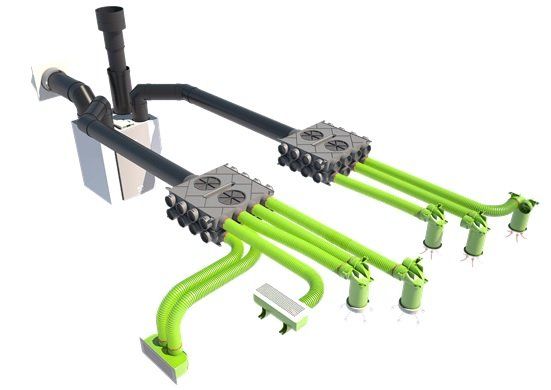

Radial ductwork systems differ from traditional trunk and branch ductwork systems by running ducts between a distribution box and each habitable and wet room. The distribution box is then connected to a ventilation unit using mass flow ductwork and a silencer.
The system pressure drop is lower as a result.
Continuous duct runs with mechanical connections at either end also mean less air leakage. The ventilation rates can be controlled by flow restrictors in the distribution box.
Cross-talk between rooms is reduced to an absolute minimum.

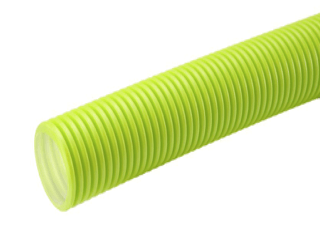

The Air Excellent circular ductwork ensures efficient air distribution between distribution boxes and the various rooms.
Due to its circular shape, the Air Excellent ductwork can be installed easily and ensures keeping pressure losses to a minimum.
Features & Benefits
- Lightweight
- Easy and quick to install
- Strong outer surface for damage-free installation
- Smooth inner surface for less pressure drop and a long-term clean system
- Anti-static and anti-bacterial properties
- For all new-build and renovation applications
- Complete set of accessories available
- Mix and match with semi-circular ductwork

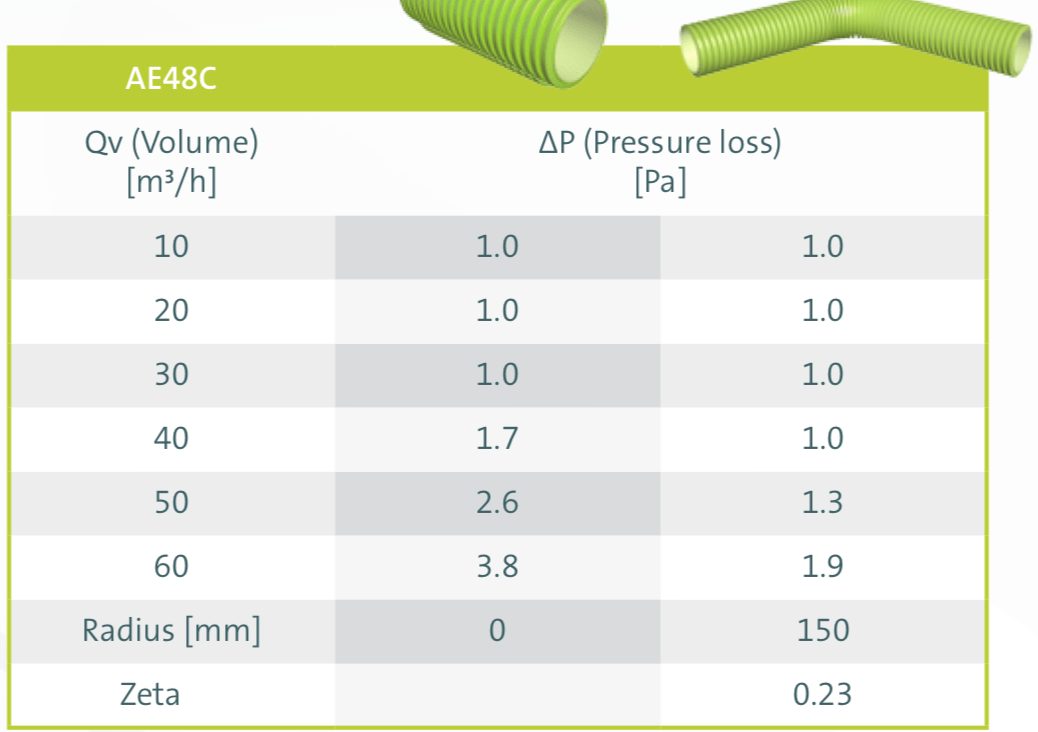

Dimensions AE48C
Outside (mm) 90
Inside (mm) 75
Surface (m2) 0.00442
Logistical Details
Weight per m (kg) 0.42
Weight per roll | 50m (kg) 21.32
Quantity per roll (m) 50
