180RenoventExcellent

Renovent Excellent 180

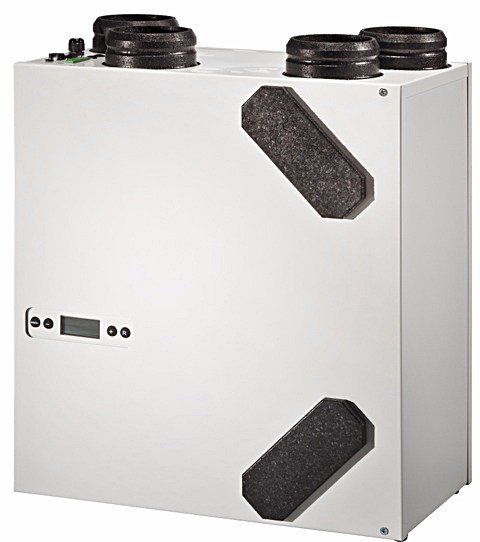

The Brink Renovent Excellent 180 is a mechanical ventilation with heat recovery unit with an efficiency of 82%, low-energy fans and a maximum ventilation capacity of 180m3/h. The Brink Renovent Excellent 180 comes ready to plug in with a 230V mains plug and a connection for a low voltage multiple switch on the outside of the appliance.

Features of the Renovent Excellent 180:
  • Adjustable air flow rates via control panel
  • Filter change indication
  • Frost protection
  • Summer by pass
  • Low energy consumption
  • High efficiency
Technical Specifications: Renovent Excellent 180
Ventilation capacity
Efficiency EN-13141-7
Efficiency PHI
Dimensions duct seal
Dimensions (H x W x D)
Versions
Constant flow
Standard bypass
Built-in preheater
180 m3/h
82%
--
125mm Dia
560 x 600 x 315 mm
4/0, Both in L or R
Yes
Yes
Yes
